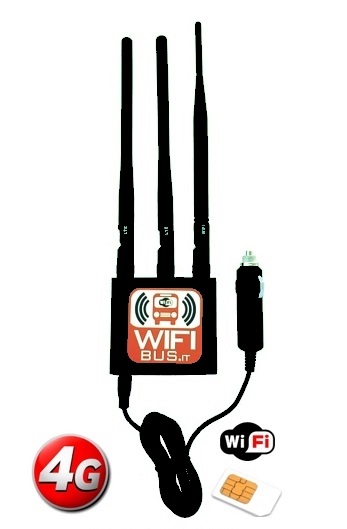

is a compact mobile router powered by cigarette ligher plug in, with high-speed wireless and Ethernet connections Internal LTE modem can reach download rate of up to 70 Mbps. Router support IEEE802.11b/g/n, WLAN standards and provide wireless receiving and transmitting rate up to 150 Mbps.
KEY FEATURES
- LTE up to 70Mbps DL and 50 Mbps UL
- Quadband UMTS and GSM
- Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b wireless standards
- Complies with IEEE 802.3 and IEEE 802.3u standards
- Durable aluminum housing
- External antennas
- Integrated OpenVPN and Dynamic DNS
- 4G backup WAN function
- SMS reboot function
- DIN rail mounting (optional)
- 4-pin terminal block power connector
TECHNICAL DETAILS
LTE
- FDD 800/850/900/1800/1900/2100/2600 MHz
- Up to 70 Mbps downlink speed
- Up to 50 Mbps uplink speed
- All bands with diversity
UMTS/DC-HSPA+
- 850/900/2100 MHz
- DC-HSPA+ mode: Max 42Mbps (DL) Max 5.76Mbps (UL)
- UMTS mode: 384 kbps DL, 384 kbps UL
- TD-SCDMA: Max 4.2Mbps (DL) Max 2.2Mbps (UL)
- Power Class 3 (24dBm +1/-3dB) for UMTS b
- 3 dBi GSM/UMTS antenna
- Rx diversity antenna connector
GSM/GPRS/EDGE
- 850/900/1800/1900 MHz
- Power Class 4 (2 W, 33 dBm) GSM/GPRS 850/900 MHz
- Power Class 1 (1 W, 30 dBm) GSM/GPRS 1800/1900 MHz
- Power Class E2 (0.5 W, 27 dBm) for EDGE 850/900 MHz
- Power Class E2 (0.4 W, 26 dBm) for EDGE 1800/1900 MHz
- GSM: 14.4 kbps DL/14.4 kbps UL
- GPRS: 107 kbps DL/85.6 kbps UL (class 33)
- EDGE: 296 kbps DL/236.8 kbps UL (class 33)
LAN and Wi-Fi
- Wireless AP, Router, 4-Port Switch and Firewall in one device
- High performance 320 MHz CPU with 256 Mbits SDRAM
- IEEE 802.3, IEEE 802.3u standards
- IEEE 802.11b/g/n Wi-Fi standards
- 64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
- 2.401 – 2.495GHz Wi-Fi frequency range
- 20dBm max Wi-Fi TX power
- Wi-Fi receiver sensitivity:
- 802.11b: -86dBm at 1Mbps; -82dBm at 11Mbps
- 802.11g: -84dBm at 6Mbps; -68dBm at 54Mbps
- 802.11n: -83dBm at MCS0 and 20MHz BW
- 802.11n: -80dBm at MCS2 and 20MHz BW
- 802.11n: -75dBm at MCS4 and 20MHz BW
- 802.11n: -68dBm at MCS7 and 20MHz BW
- 3x LAN 10/100Mbps Ethernet ports
- 1x WAN 10/100Mbps Ethernet port
- Supports Auto MDI/MDIX
- Remote/local Web management
- 1x 5dBi wireless antenna
- SSID stealth mode and access control based on MAC address
- System log to record the status of the Router
- Dynamic DNS
- LAN access control over Internet connection
- Virtual server
- OpenVPN
- IPSec
- PPPoE
- Backup WAN
- SMS and Ping reboot
- Status via SMS
- Send/read SMS via HTTP POST/GET
- Monitoring by SNMP
- 1x Power LED, 4x LAN status LEDs
Electrical, Mechanical & Environmental
- Dimensions (H x W x D) 80mm x 70mm x 22mm
- Weight 120g
- Power supply 100 – 240 VAC -> 9 VDC wall adapter
- Input voltage range 7 – 30 VDC
- Power consumption < 5W
- Antenna connectors 2 x SMA for GSM, 1 x RP-SMA for Wi-Fi
- Indicators 4 x Ethernet LEDs, 1 x Power LED, 1 x GSM LED
- Operating temperature 0º to 50º C
- Storage temperature -20º to 70º C
- Operating humidity 10% to 90% Non-condensing
- Storage humidity 5% to 95% Non-condensing
