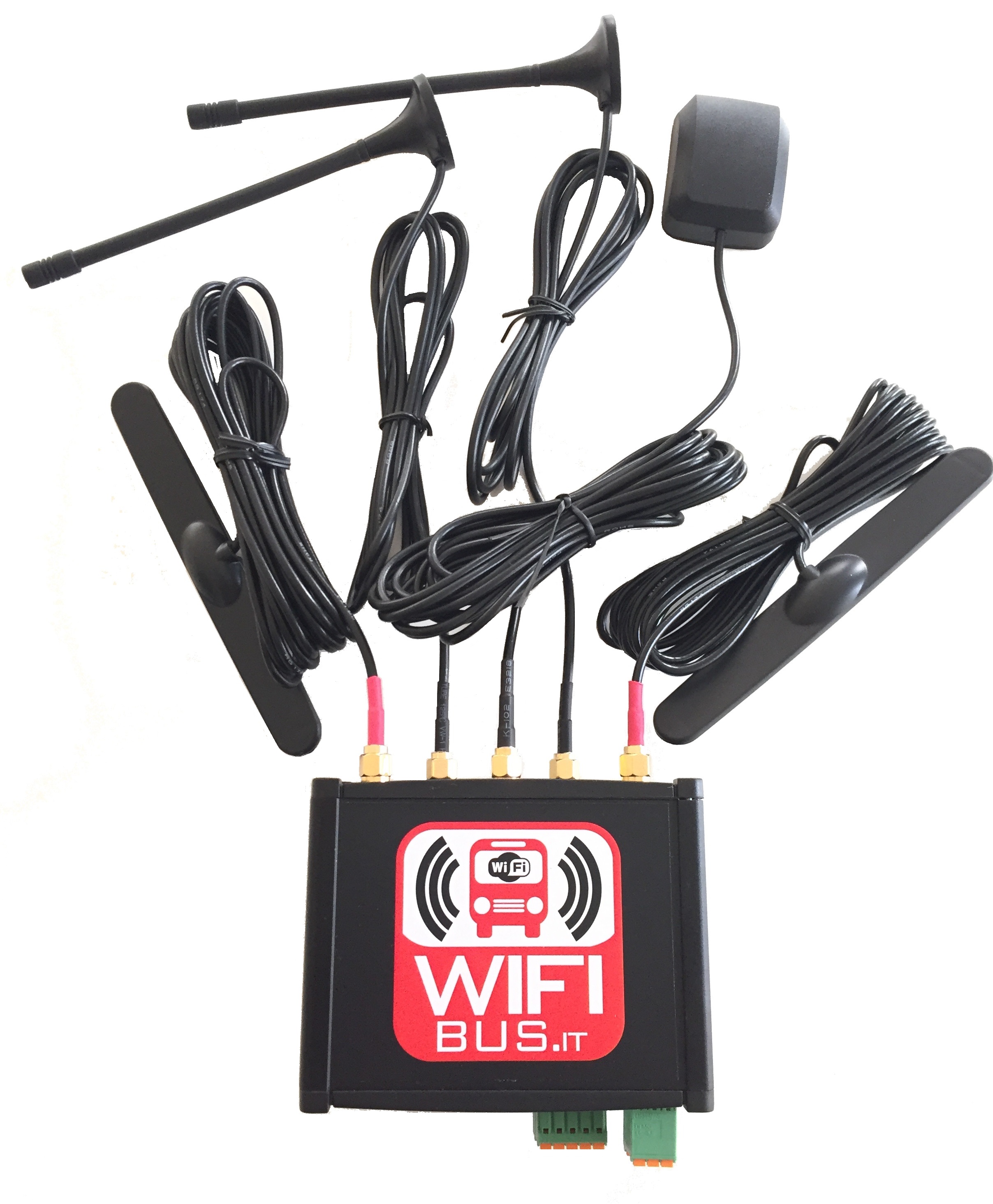

WiFiBus PRO is a compact professional 4/5G WiFi router that connects to the internet via the cellular network and redistributes the on-board signal via WiFi. Some models are equipped with a GPS receiver which allows you to check the position of the vehicle in real time through the web control panel. The device can contain up to two data SIMs and is supplied in a self-installing kit. The package includes two/four self-adhesive LTE antennas with a 5m cable to be placed on the windshield, two WiFi antennas, a 12/24 VDC power supply with cigarette lighter socket. It is possible to remotely manage the WiFiBus PRO router via a web control panel. The WiFiBus PRO router is suitable for providing the WiFi service for up to 80 passengers on board.
- Model
- MINIBUS
- Suggested users
- 4G LTE
- Download speed
- WiFi
- 4G Antenna
- WiFi Antenna
- GPS Antenna
- RAM
- CPU
- SIM card slot
- Operating temperature
- Voltage
- Power consumption
- Dimensions (L x H x D)
- WIFIBUS PRO 20
- MINIBUS
- 20
- CAT 4
- 150 Mbps
- 2.4 GHz (b/g/n)
- 2x SMA
- 1x RP-SMA
- –
- 128MB
- 580 MHz
- 1x 2FF
- -40 °C to 75 °C
- 9 – 30 VDC
- 6W max
- 83 x 25 x 74 mm
- WIFIBUS PRO 60
- BUS
- 60
- CAT 6
- 300 Mbps
- Dual-Band (b/g/n/ac)
- 2x SMA
- 2x RP-SMA
- 1x SMA (opzionale)
- 256 MB
- 880 MHz
- 2x 2FF
- -40 °C to 75 °C
- 9 – 50 VDC
- 12W max
- 115 x 44.2 x 95.1 mm
- WIFIBUS PRO 80
- DOUBLE BUS
- 80
- CAT 12
- 600 Mbps
- Dual-Band (b/g/n/ac)
- 4x SMA
- 2x RP-SMA
- 1x SMA (opzionale)
- 512 MB
- 1.3 Ghz
- 2x 2FF
- -40 °C to 75 °C
- 9 – 50 VDC
- 18W max
- 132 x 44.2 x 95.1 mm
